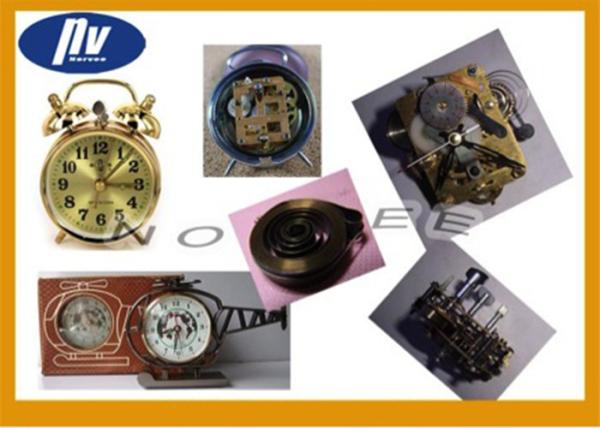

The clock spring (also referred to as a flat torsion spring) is
designed to produce a torsional force (circular movement). In
contrast to the tightly coiled motor spring on the previous page,
the clock spring has open coils that, when mounted correctly,
reduces fricton to zero. However, torque capacity is reduced as a
result. The standard range is made from rounded edge stainless
steel, which affords a better fatigue life.
Our service:
1. Can design for you
2. Advanced equipments of Springs
3. High quality with competitve price
4. Safe package
5. Fast delivery
Power Springs
Power springs are identified by the many coils of strip material
stored in a case, barrel, or band, and connected to a central arbor
or shaft. When this shaft is rotated, the material starts to wind
flat against it. This action creates an increasing torque for as
many turns as it can be wound until there is no material left.
Pre-pressed or conventional power springs
Our capabilities of power springs range from 0.002 inch to 0.125
inch material thickness and from 0.030 inch to 3 inch material
widths. Power springs can be made using pre-stressed (back wound)
or conventional (from flat) methods. Pre-stressed power springs are
spooled to a special free diameter and back wound into a housing or
keeper, while conventional wound springs are manufactured and wound
in the flat state. The advantages of pre-stressed springs are that
it allows maximized torque from a specific material. Conventional
wound power springs, however, offer increased cycle life.
Applications for power springs
· seatbelt retractors
· tape measures
· retractable dog leads
· electrical cord retractors
· hose reels
· wind-up toys
· pull start on small gas-powered engines
· tool balancers
· valves
Application:
Helical torsion springs in a wide range of variations
Torsion springs can either have a left-hand or right-hand helix.
They are made to give a force and torque when one leg is turned
relative the other.
Our helical torsion springs are made in dimensions from 0.03- 26
millimeter and we select wire diameter, spring body diameter,
length and pitch to suit your requirements.
For closed coiled helical torsion springs there will be a friction
between the coils giving a hysteresis in the torque-angle
performance.
There are generally two common types, single and double coil
torsion springs. Normally is the coil controlled inside with a
mandrel but also an outer control with a cylindrical housing is
possible. With fixed assembled legs the spring type can work
without a coil body control. Tangential legs give the lowest
stresses but also radial and axial legs of different types are
possible. In many cases the strain in the legs must be considered
in the design.
